Procedure to configure the repeater mode cameras of the KIT430W/830W for both versions.

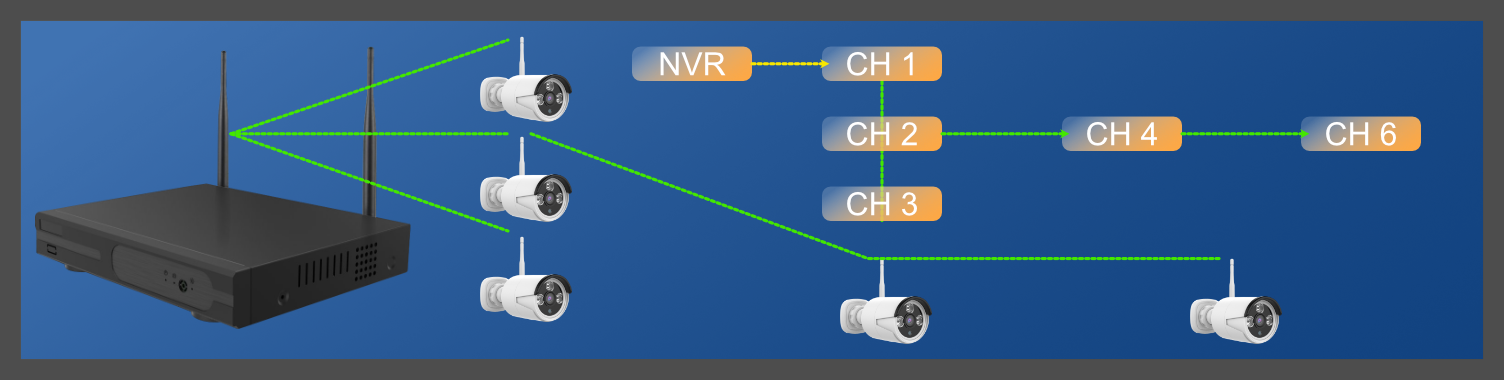

If the cameras are too far apart, you can use the repeater or range extender mode to use a hop on a camera in between to repeat the signal.

When preparing the configuration, it is recommended to keep the cameras close to the NVR.

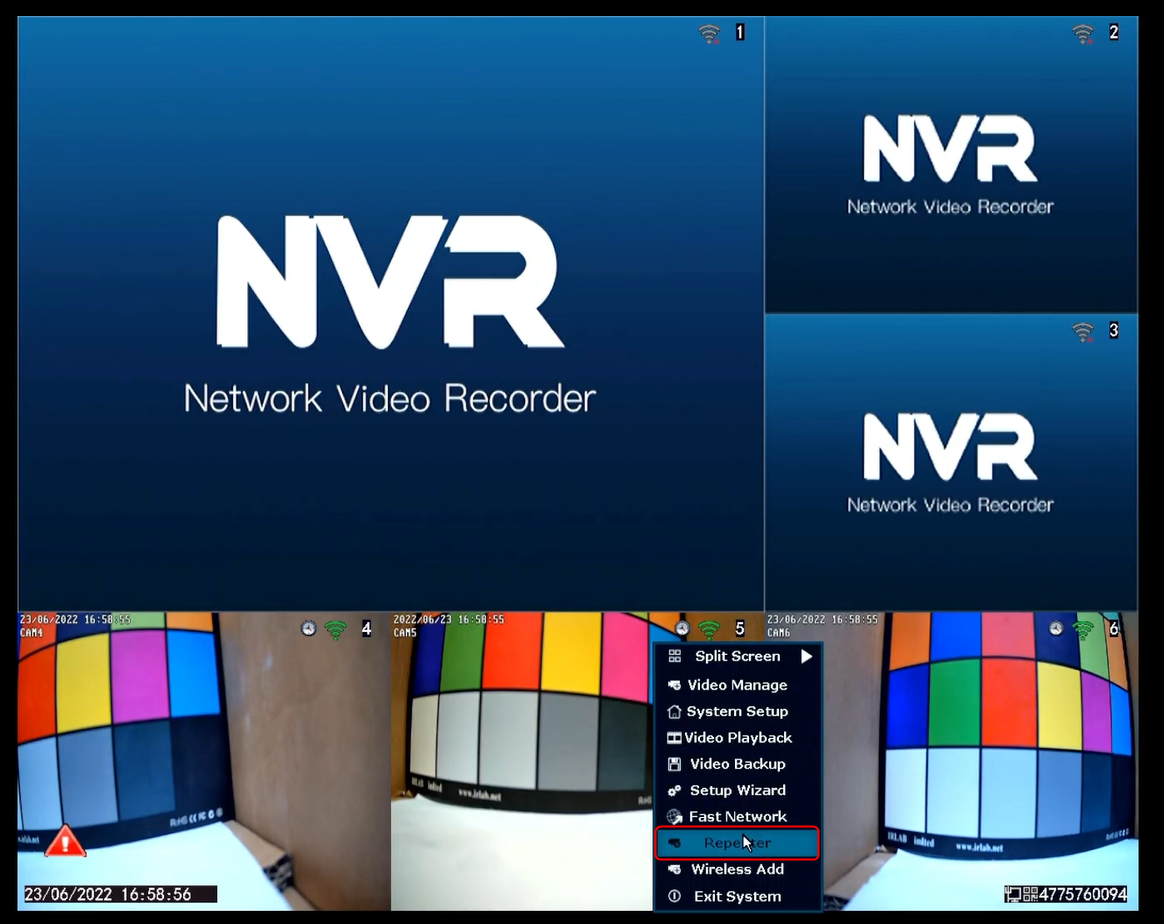

1. Right-click on the monitor and select “Repeater”.

RECORDER VERSION 1

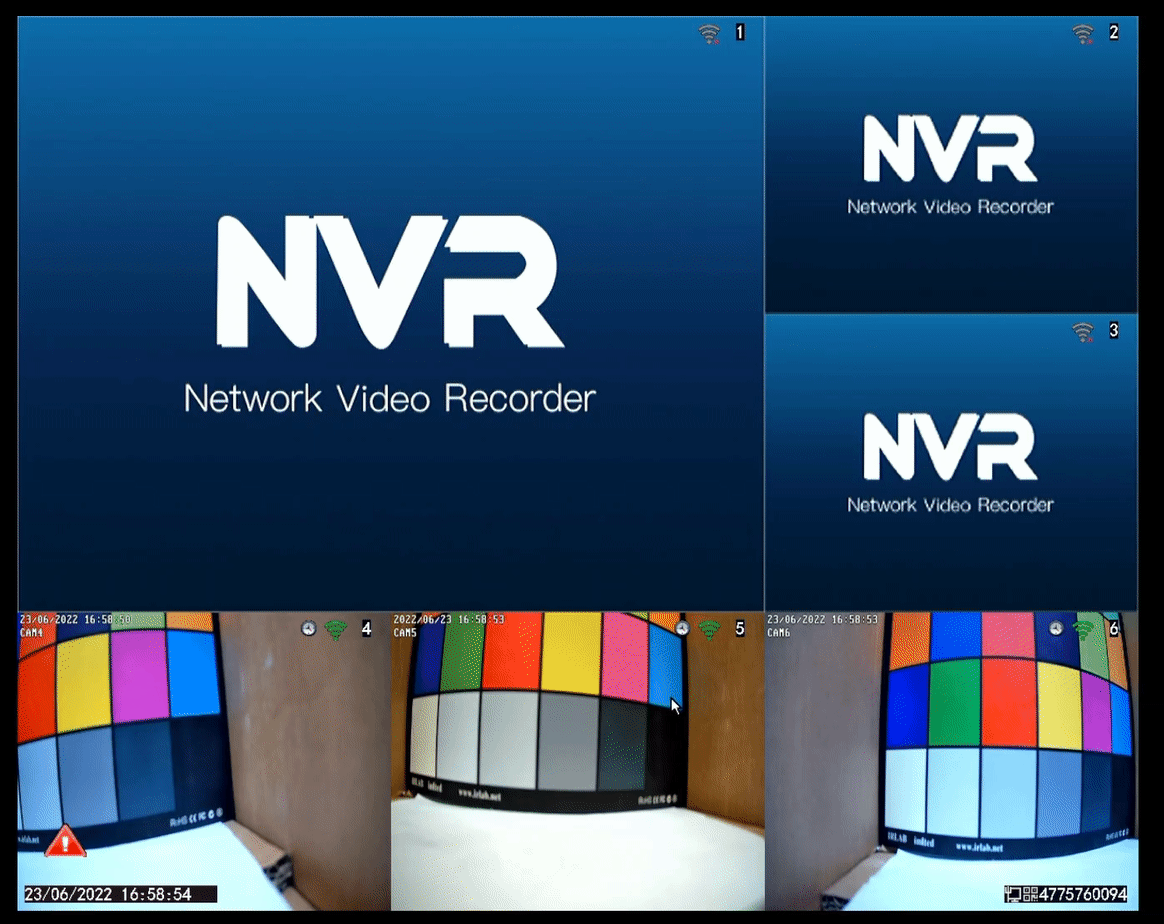

2. Enter username and password

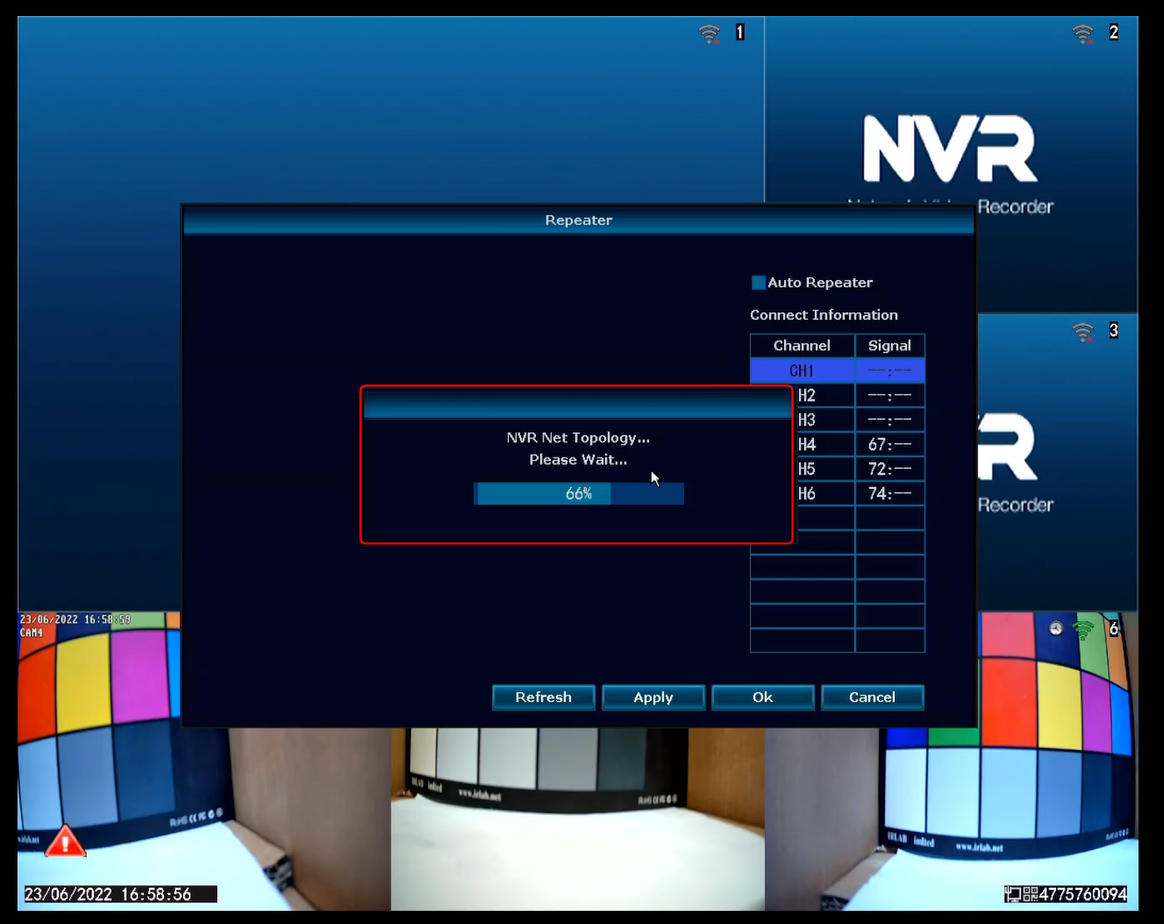

3. Wait for the configuration to load

The green line shows the cameras that are already connected to the NVR.
Note: There is a limit of 3 cameras on a line so that they can work with each other as a repeater for the next one.

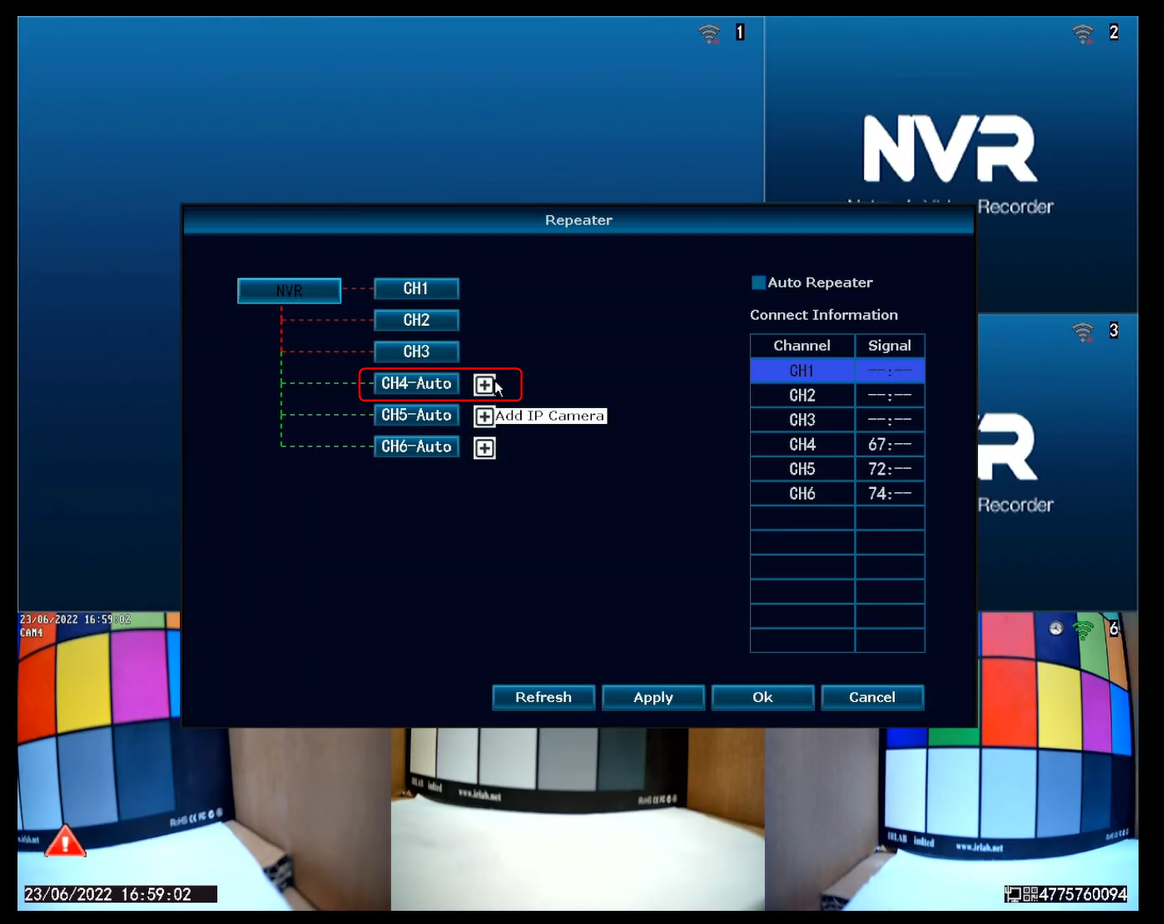

4. Click the plus sign next to the camera you want to connect to the extended camera and add one more when necessary

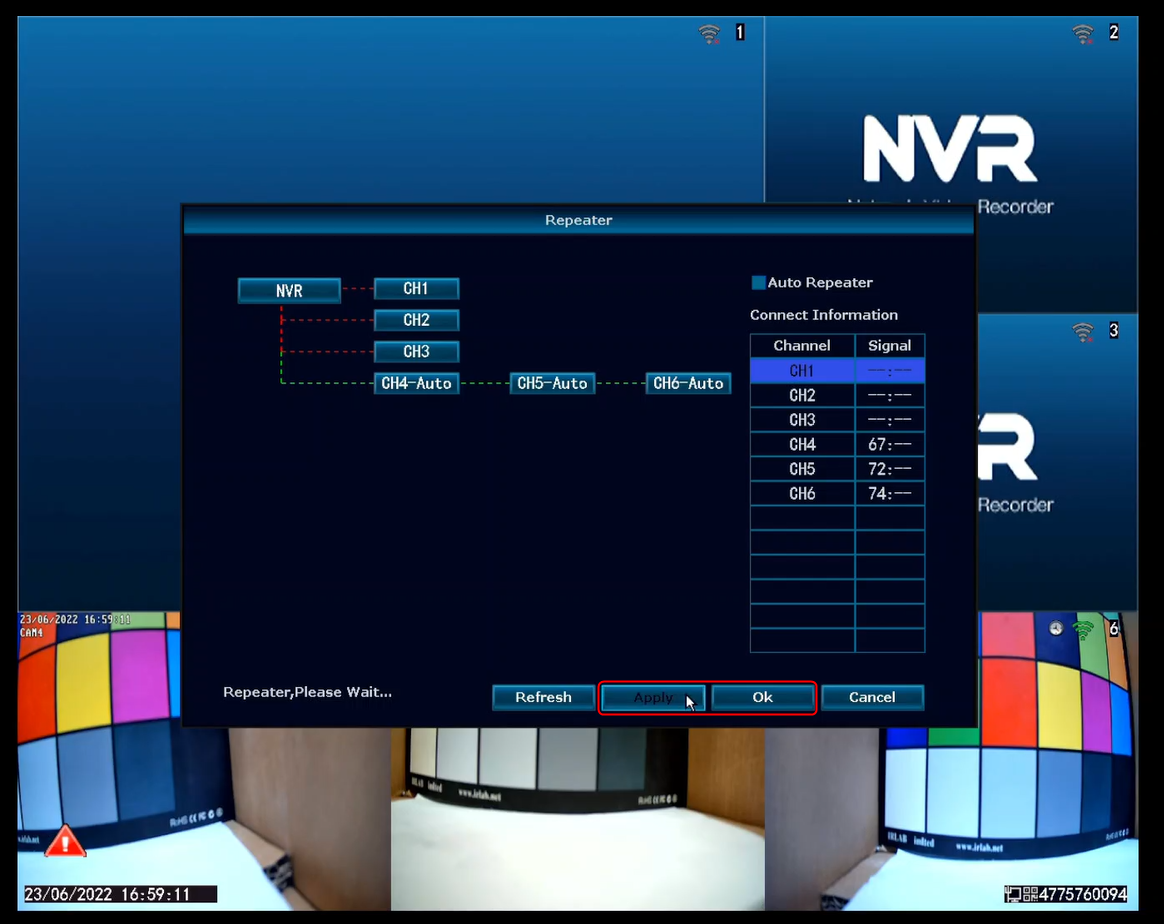

5. Click Apply or Ok to save

By using the Apply button the configuration result will appear.

RECORDER VERSION 2

1. Enter the settings menu

2. Select the NETWORK menu

​​

3. Select the 'Camera Repeater' menu

4. Select the camera you are going to configure in repeater mode

5. Assign the camera that will be connected to the camera in repeater mode.

​
