Nivian - Tag Configuration - NVS-VIDEOINTERCOM-2W // KPAD

Procedure to add tags to the video intercom.

Preliminary considerations

Before starting, make sure of the following:

1. There must be a master tag:

• This tag DOES NOT allow opening the lock.
• Its function is only to add and remove other tags.

      2. It is essential to identify how the lock is connected, as this determines which relay is used:

Option A: Lock powered from the exterior panel.

• Connection at: LOCK+ and GND
• Uses: Relay 2
• Opening from the monitor: Padlock 2

Option B: Lock with independent power supply.

• Connection at: NC/NO and COM
• Uses: Relay 1
• Opening from the monitor: Padlock 1

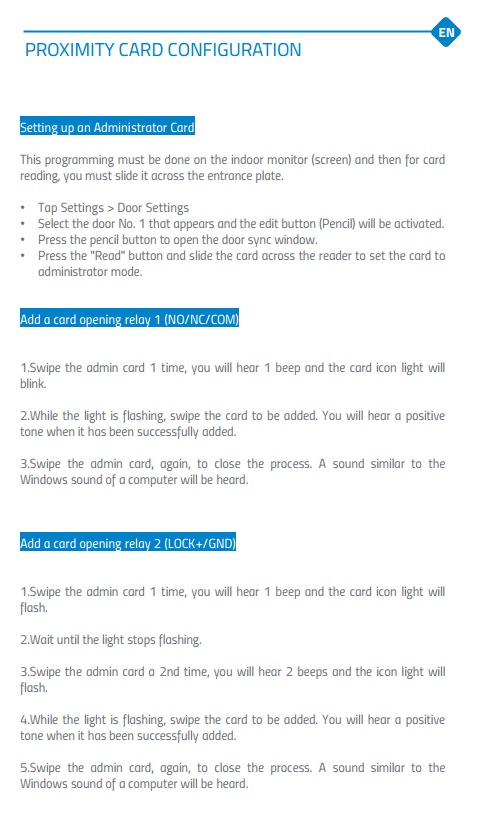

    3. Taking into account the above, in the following image you will find the instructions to add the tags.

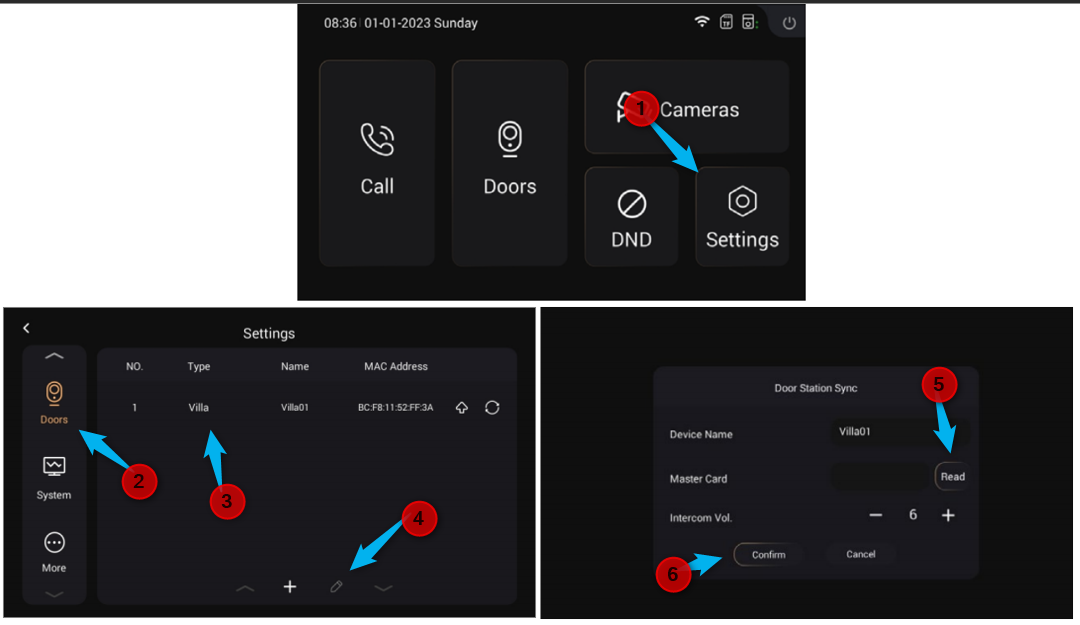

Access to edit mode

• On the device, press the pencil (edit) icon.
• Enter the factory password:  123456
